E32 Area monitoring

E32 Area monitoring

Area monitoring fiber sensor heads

The area monitoring fibers allow the detection of objects passing anywhere through the detection range and can be used for height comparisons of different objects.

  • Area monitoring up to 70 mm height
  • Multi-beam sensor with 4 seperate heads for flexible detection points
  • Standard or high flex fibers

Specifications & ordering info

Ordering information

Sensor type

Sensing height
(in mm)

Sensing distance (in mm)1

Order code

Standard fiber

High-flex fiber

Standard fiber

High-flex fiber

E3X-HD

E3NX-FA

E3X-HD

E3NX-FA



10

4000

4000

-

-

E32-T16

-

2

11

2200

3300

1700

2550

E32-T16P

E32-T16PR 2M



30

3600

4000

2600

3900

E32-T16W 2M

E32-T16WR 2M

50

-

-

3000

4000

-

E32-ET16WR-2 2M

70

-

-

3500

4000

-

E32-ET16WR-1 2M



11

2000

3000

1500

2200

E32-T16J 2M

E32-T16JR 2M



4 × seperate M3 heads

1300

1900

-

-

E32-M21

-



11

-

-

300

450

-

E32-D36P1 2M

Specifications

Item

Standard

High-flex



E32-T16

E32-M21

E32-T16J

E32-T16P

E32-T16W

E32-D36P1

E32-ET16WR-1

E32-ET16WR-2

E32-T16JR

E32-T16PR

E32-T16WR

Permissible bending radius

R25

R10

R4

R1

Cut to length

Yes

Ambient temperature

-40°C to 70°C

Material

Head

ABS

Stainless steel

ABS

Brass-nickel plated

Aluminium

ABS

Fiber

PMMA

Sheath

Polyethylene coating

PVC coating

Polyethylene coating

PVC coating

Degree of protection

IEC 60529 IP67

IEC 60529 IP50

IEC 60529 IP54

IEC 60529 IP50




1. Sensing distance measured with Standard mode

2. Sensing area aligned to top of housing.

1. Sensing distance measured with Standard mode

2. Sensing area aligned to top of housing.

Accessories

Accessories

Shape

Type

Comment

Order code



Focal lens

- Extends sensing distance by more than 500%

- For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread)

- 2 pcs per set

E39-F1



Focal lens (side view)

- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11,
E32-T61-S, E32-T81R-S (fits M2.6 thread)

- Temperature range -40 to 200°C

- 2 pcs per set

E39-F2



Focal lens (variable)

- For precision detection with E32-D32

E39-F3A



Focal lens



- For precision detection with E32-EC41

E39-F3A-5



- For precision detection with E32-EC41

E39-F3B

- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)

E39-F18



Focal lens (side view, variable)

- For precision detection with E32-EC31

E39-EF51



Focal lens (heat resistant)

- Extends sensing distance by more than 500%

- For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S,
E32-T81R, E32-T81R-S (fits M4 thread)

- Temperature range -60 to 350°C

- 2 pcs per set

E39-EF1-37-2

E39-F16



Focal lens (vacuum resistant, heat resistant)

- Fits E32-T51V and E32-T54V (fits M2.6 thread)

- 2 units per set

- Heat resistant up to 120°C

E39-F1V



Fiber cutter

- Included in applicable fiber

E39-F4



Thin fiber attachment

- Amplifier adapter for thin fibers

- Included in applicable fiber (2 sets)

E39-F9



Sleeve bender

- For E32-TC200B(4)

- For E32-TC200F(4)

- For E32-DC200F(4)

E39-F11



Single fiber extension
connector

- Fiber extension connector for 2.2 mm dia standard fibers

- One unit

E39-F10



Dual fiber extension connector

- For fibers with dia 2.2

E39-F13

- For fiber with dia 1.0

E39-F14

- For fibers with dia between 1.0 and 2.2

E39-F15









Protective spiral tube 1

- For M3 diffuse type sensors

- Length 1 m

E39-F32A

- For M3 through beam type sensors

- Length 1 m

E39-F32B

- For M4 through beam type sensors

- Length 1 m

E39-F32C

- For M6 diffuse type sensors

- Length 1 m

E39-F32D







Fiber on roll 2

- Dia 2.2 mm

- Standard monocore, 10 mm bending radius

- -40 to 80°C

E32-E01 100M

- Dia 1.1 mm

- Standard monocore, 15 mm bending radius

- -40 to 80°C

E32-E02 100M

- Dia 2.2 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E01R 100M

- Dia 1.1 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E02R 100M

- Dia 2.2 mm

- High temperature monocore, 20 mm bending radius

- -60 to 150°C

E32-E05 100M


1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

How can we help you?

If you have a question or would like to ask for a quote, please contact us or send a request.

+27 (0)11 579 2600
Contact us

Contact me E32 Area monitoring

e32 area monitoring prod

Please, complete all the fields marked with *. Your personal details will be handled confidentially.

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Details

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for submitting your request. We will come back to you as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
+27 (0)11 579 2600
+27 (0)11 579 2600
Request quotation
Request quotation

Quotation for E32 Area monitoring

By completing this form you can request a quotation. Your personal details will be handled confidentially.

e32 area monitoring prod

Personal details

E32 Area monitoring

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Quote details

Select notification error

Select notification error

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for requesting a quotation. We will provide you with the required information as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
Request quotation
Request quotation

Features

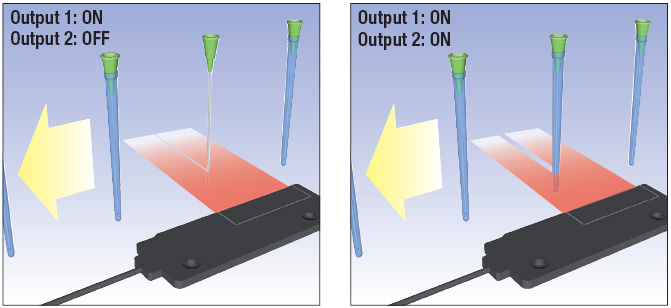

Two state detections

The two outputs of the E3X-DA-S can be used to detect two different light levels.

Position compensation

two state detections 02 prod

In combination with the twin output function of the E3X-DA-S amplifier, the diffuse reflective area monitoring fibers can detect very small objects (e.g. needles) and a second state (e.g cover present). The area beam compensates for position variations at high speed.
