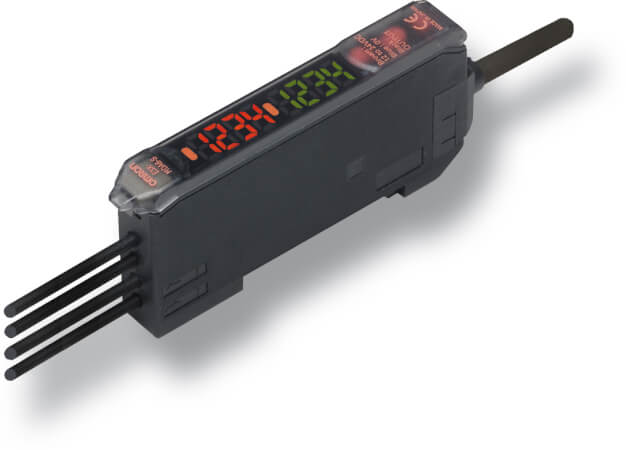

E3X-MDA
2-in-1 digital fiber amplifier
E3X-MDA incorporates 2 digital fiber amplifiers in one slimline housing. For applications requiring the detection of two objects simultanously the E3X-MDA provides an easy to use operation saving space and set-up time.
- Two digital amplifiers in one slimline housing
- Twin output models – on/off or area (between two threshold values)
- Signal comparison functions (AND, OR, etc.)
Specifications & ordering info
| Product | Shape | Sensing method | Setting method | Connection method | Cable length | Output type | Operation mode | Response time | Material housing | Power supply voltage | Functions | Features | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | NPN | Dark-ON, Light-ON | 0.130 ms | Plastic | 12-24 V | Area output, Timer, Twin | 2 channels, Twin outputs | Fiber amplifier, 2 fiber input, AND/OR functions, 2 NPN output, 2m cable | |
| Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | PNP | Dark-ON, Light-ON | 0.130 ms | Plastic | 12-24 V | Area output, Timer, Twin | 2 channels, Twin outputs | Fiber amplifier, 2 fiber input, AND/OR functions, 2 PNP output, 2m cable | |
| Cuboid, rail mounting | Amplifier | Teach-In | System connector | PNP | Dark-ON, Light-ON | 0.130 ms | Plastic | 12-24 V | Area output, Timer, Twin | 2 channels, Twin outputs | Fiber amplifier, 2 fiber input, AND/OR functions, 2 PNP output, connector |
How can we help you?
If you have a question or would like to ask for a quote, please contact us or send a request.
Contact me E3X-MDA
Thank you for submitting your request. We will come back to you as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadQuotation for E3X-MDA
By completing this form you can request a quotation. Your personal details will be handled confidentially.
Thank you for requesting a quotation. We will provide you with the required information as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadFeatures
Logic operations without PLC
The AND and OR functionality for the two fiber channels allows simple signal processing without the need for a PLC. This allows the addition of sensor checks to machines without reprogramming the PLC.
Space & cost reduction
The 2 in 1 amplifier replaces two standard amplifiers reducing space requirements and hardware cost.
